Manual 1.0.0

Manual · version 1.0.0 · Unreal Engine 5.5–5.8

Check every mod before it reaches your players

ModGate reads a mod’s packages as data, never loading them, and blocks executable content: Blueprint script, calls to dangerous engine functions, native code, scripts and config. It also closes the LaunchURL hole the 2026 Workshop malware used.

  • Free
  • UE 5.5 · 5.6 · 5.7 · 5.8
  • Editor menu + CI commandlet
  • .pak · IoStore · .zip · .uasset
  • Nothing ships in your game
Quick startRulesProject auditLimits

Background: the gate hall from ModGate’s promo trailer, rendered in Unreal Engine.

ModGate checks a mod before your game loads it. It reads the mod's packages and files as data, never loading them, and reports any executable content inside: Blueprint script, calls to dangerous engine functions, native code, script files and config files. A second check audits your project and closes the LaunchURL hole that the 2026 Meccha Chameleon Workshop malware used.

It's free. It runs in the editor (Tools > ModGate) or headless in CI (-run=ModGate), with exit codes and JSON/HTML reports.

#What ModGate is, and what it isn't

It is:

  • a scanner that flags and blocks executable content in mod packages;
  • a project audit with a one-step fix for LaunchURL.

It isn't:

  • A sandbox. Compiled Blueprints can't be made safe by restricting what they call. The bytecode interpreter does no type checks, so a crafted Blueprint can escape any list of allowed functions. That is why the default profile blocks Blueprint script outright.
  • A guarantee that data is safe to load. A clean result means ModGate found none of the kinds of executable content listed below. Malformed data can still attack the engine's own loaders, and data can still steer your game's code.
  • An antivirus. It doesn't scan your computer or recognise malware by signature.

#Why it exists

In July 2026, Steam Workshop maps for Meccha Chameleon, a UE5 game, carried a Blueprint actor named like an ambient controller.

  • When a match started, the actor used two stock engine functions: GetPlatformUserDir, then the JSON plugin's ToFile. With them it wrote a batch file to the player's Documents folder.
  • That batch file fetched a remote-access trojan.
  • An earlier proof of concept ran a .bat shipped beside the map through LaunchURL. On Windows, LaunchURL hands non-web URLs to the shell.
  • The maps had passed Workshop review. Their folders held only the usual container files (.pak, .utoc, .ucas), a preview image and metadata. There was no executable file to spot.

ModGate blocks each step of that chain:

Step ModGate
A Blueprint that runs on BeginPlay M1 Blueprint script (blocked under the default data-only profile)
It calls LaunchURL, JSON ToFile and GetPlatformUserDir M2 dangerous engine function (found through the package's import table)
A command line stored as a Blueprint string M5 command text
A .bat next to the map M4 script file
LaunchURL opening file:// paths Audit A1, fixed by -Audit -Fix

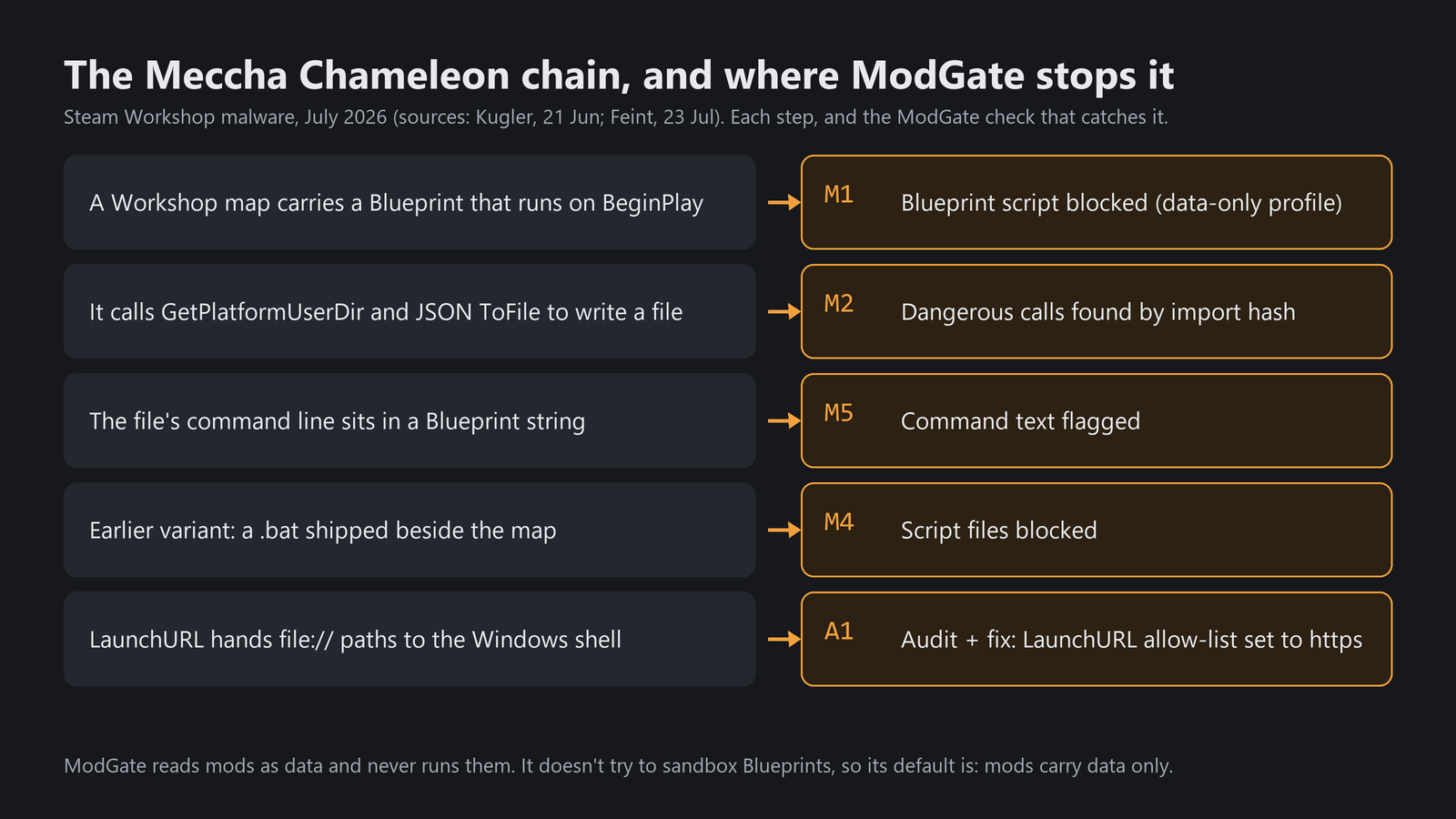

The 2026 Workshop malware chain and where ModGate stops each step
The Meccha Chameleon chain, step by step, and the rule that stops each step.

#Quick start

In the editor:

  • Tools > ModGate > Check Mod Folder… or Check Mod File… scans in a separate process, so a malformed file can't take the editor down, then opens the HTML report.
  • Tools > ModGate > Audit This Project checks your mod attack surface.
  • Tools > ModGate > Restrict LaunchURL to https… writes the fix.

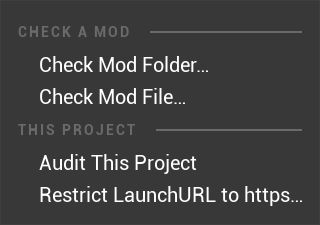

The Tools > ModGate submenu in the Unreal Editor
Tools › ModGate in the Unreal Editor (5.8), drawn by the editor itself. The two checks run in a separate process and open the HTML report; the audit and the fix act on the open project.

Headless:

UnrealEditor-Cmd.exe MyGame.uproject -run=ModGate -Package="D:\Workshop\3765145606"
UnrealEditor-Cmd.exe MyGame.uproject -run=ModGate -Package=Mod.zip -Profile=blueprint-mods -Report=out\mod.json
UnrealEditor-Cmd.exe MyGame.uproject -run=ModGate -Audit
UnrealEditor-Cmd.exe MyGame.uproject -run=ModGate -Audit -Fix -AllowSchemes=https,steam

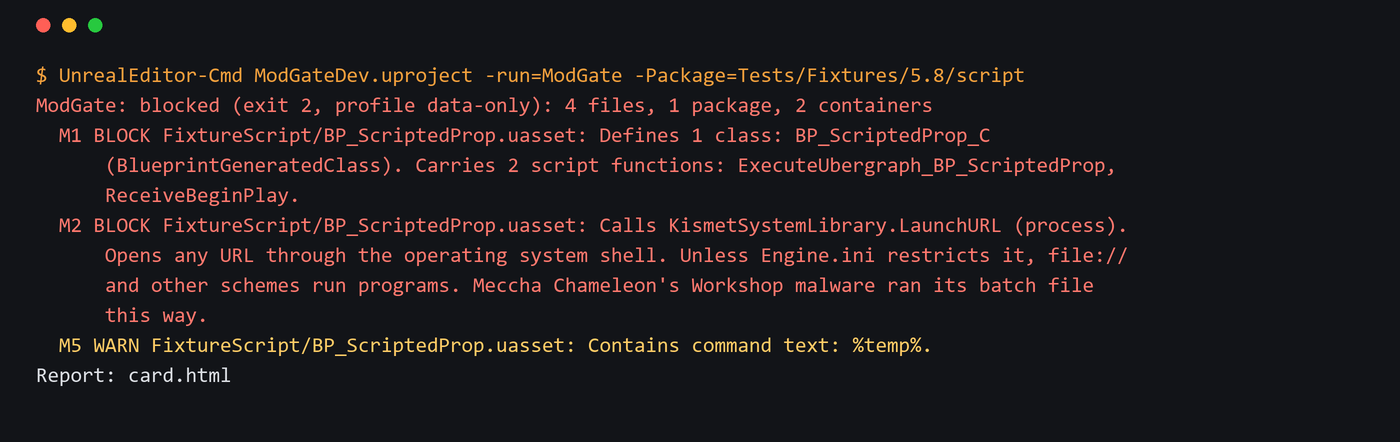

ModGate commandlet output for a scripted mod: blocked, exit 2
A real run on ModGate’s scripted test mod (paths shortened): M1 and M2 block, M5 warns, exit code 2. The mod’s Blueprint only prints a line and opens example.com; it’s inert test content.

Run it from your game's own project, or from your mod kit. Then every game class and plugin a mod might use is loaded, and ModGate can name every native reference (see M9).

#Inputs

-Package= takes any of these:

  • A folder, such as a Steam Workshop item or an unpacked download. It's scanned recursively.
  • A container: a .pak, or an IoStore .utoc/.ucas.
  • A .zip, such as a mod.io download. It's extracted to Saved/ModGate/Extract and the extracted copy is deleted after the scan. Entries whose paths leave the folder ("zip slip") aren't extracted and are reported.
  • A package file: .uasset or .umap, plus its .uexp.

#Exit codes

Code Meaning
0 Clean: no executable content found
1 Warnings to review (-FailOnWarn turns these into 2)
2 Blocked
3 Input or report error (missing file, bad policy, unknown profile)
anything else The process stopped. Unreal's own container readers treat some malformed files as fatal errors. Treat it as blocked.

#Reports

Reports go to <input>.modgate.json and .html by default, or wherever -Report= points. The JSON lists every finding (rule, severity, path, detail, why, fix) and an inventory of each package: classes defined, script functions, native functions used, game classes used, command text.

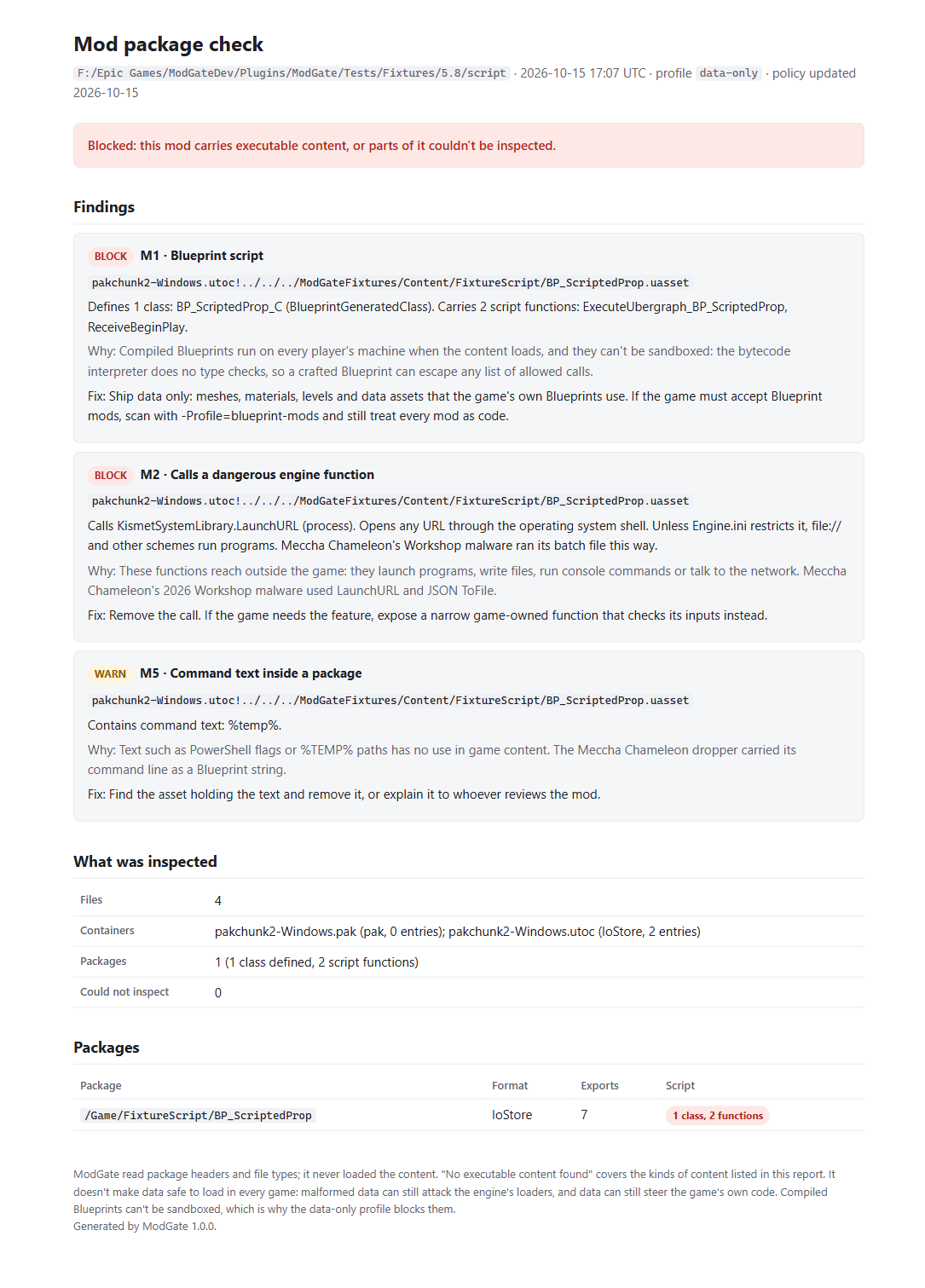

Blocked: a Blueprint that calls LaunchURLModGate HTML report for a scripted mod: blocked

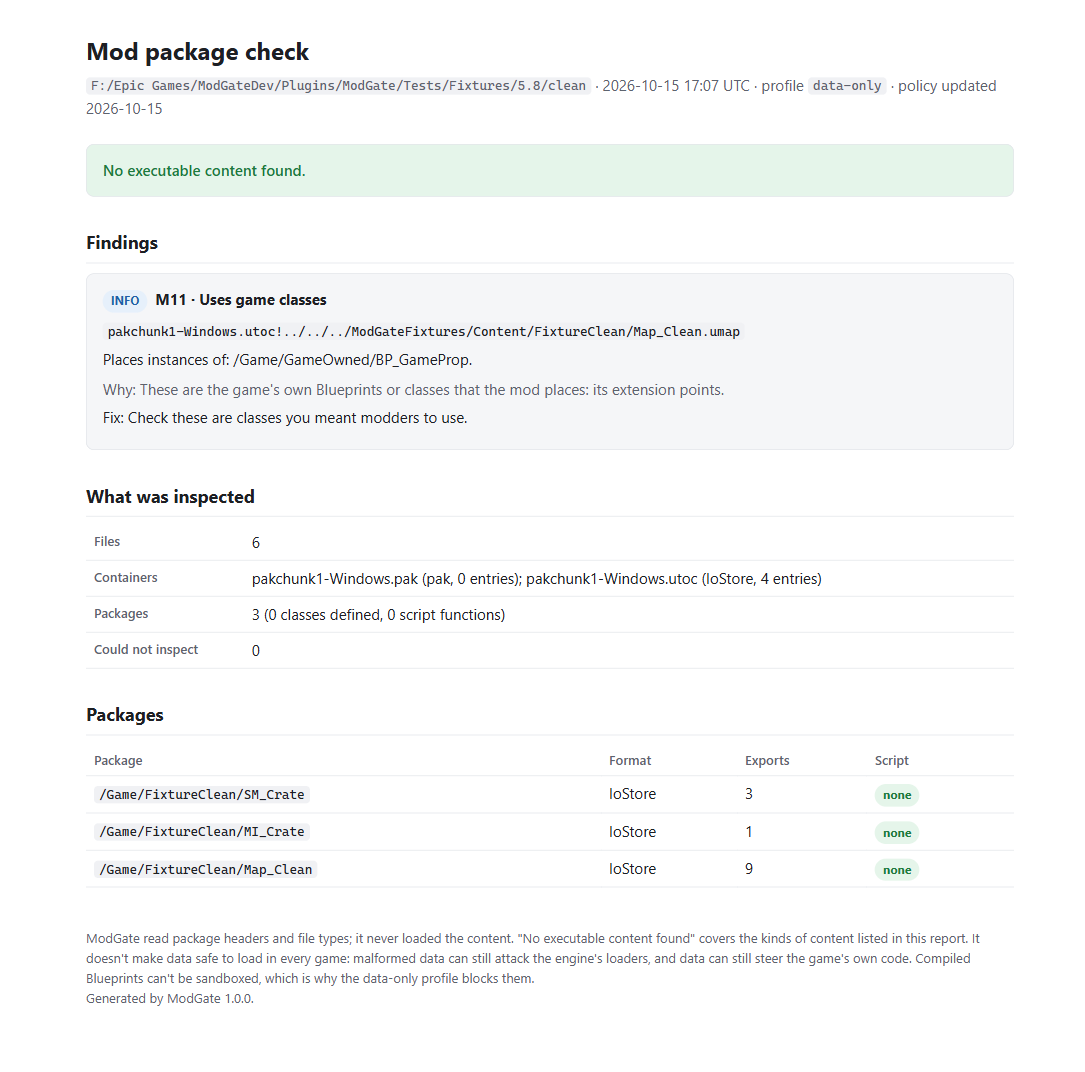

Clean: a mesh, a material and a mapModGate HTML report for a data-only mod: clean

The HTML reports for the two test mods. Every finding says what was found, why it matters and how to fix it.

#Rules

Rule Title data-only (default) blueprint-mods
M1 Blueprint script: the mod defines a class or carries script functions Block Warn
M2 Calls a dangerous engine function (policy list, matched by import hash) Block (Warn for read-only "recon" functions) Block
M3 Native code: executable or library bytes, native file types, a plugin descriptor with code modules Block Block
M4 Script or shell file (.bat, .ps1, .vbs, .lnk, .py, .sh, …) Block Block
M5 Command text inside a package (powershell, cmd /c, %TEMP%, …) Warn Warn
M6 Config file (.ini) inside the mod Block Block
M7 File type not on the policy's allow list Block Block
M8 Could not be inspected: encrypted, damaged, another engine version, zip slip Block, always Block, always
M9 A native reference this editor can't name Warn Warn
M10 Shader code Info Info
M11 Game classes the mod places (your extension points) Info Info

data-only is the safe design: mods supply meshes, materials, levels and data assets, and your game's own Blueprints act on them.

blueprint-mods is harm reduction for games that already accept Blueprint mods. It still blocks known-dangerous calls, but it can't make Blueprint mods safe.

#How M1 and M2 work

ModGate reads each package's export and import tables.

  • An export whose class is a class type (BlueprintGeneratedClass, WidgetBlueprintGeneratedClass, …) or a function type is executable content (M1).
  • A cooked IoStore package stores each engine object it uses as a hash of the object's path. ModGate hashes the policy's dangerous functions the same way, so it recognises KismetSystemLibrary.LaunchURL even when the plugin that defines a function isn't loaded.

#The project audit

-run=ModGate -Audit (or the menu) writes Saved/ModGate/ProjectAudit.html.

Check What it looks at
A1 LaunchURL allow-list Engine 5.5–5.8 filter UKismetSystemLibrary::LaunchURL through [SystemLibrary.LaunchURLFilter <scheme>] sections in Engine.ini, but ship none. With no section, Blueprint LaunchURL opens anything, and on Windows file:// goes to the shell. A1 asks the engine's own filter, built the way LaunchURL builds it, whether a file:// URL passes.
A2 Dangerous functions Blueprints can reach Lists the policy's functions present in this build. A warning names optional plugins that expose file writes or processes, such as JsonBlueprintUtilities.ToFile. Editor-only modules are listed separately: they matter for cooked-editor mod kits, not packaged games.
A3 Project functions to review Your own Blueprint-callable functions whose names suggest file, process, console or network access.

The fix: -Audit -Fix (or Restrict LaunchURL to https…) writes this to Config/DefaultEngine.ini:

[SystemLibrary.LaunchURLFilter https]
!AllowedDomains=ClearArray
  • It backs the file up once first, to DefaultEngine.ini.modgate-backup, and running it again changes nothing.
  • It replaces any existing LaunchURLFilter sections and refuses to allow the file scheme.
  • It takes effect the next time the editor or game starts.
  • -AllowSchemes=https,steam keeps other schemes your game opens on purpose. -AllowDomains=yourgame.com limits the domains.

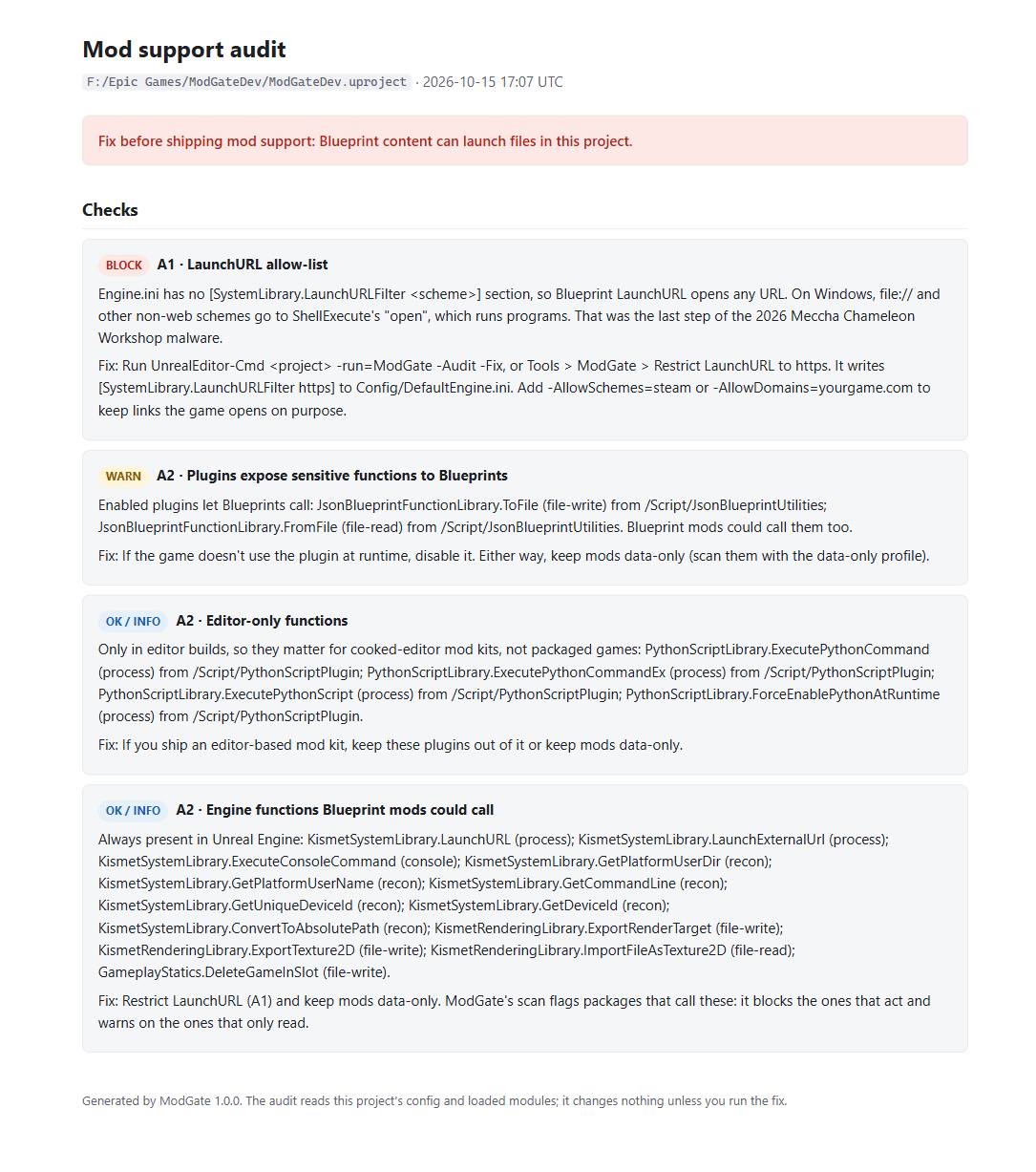

Before: the engine’s defaultProject audit before the fix: A1 blocks

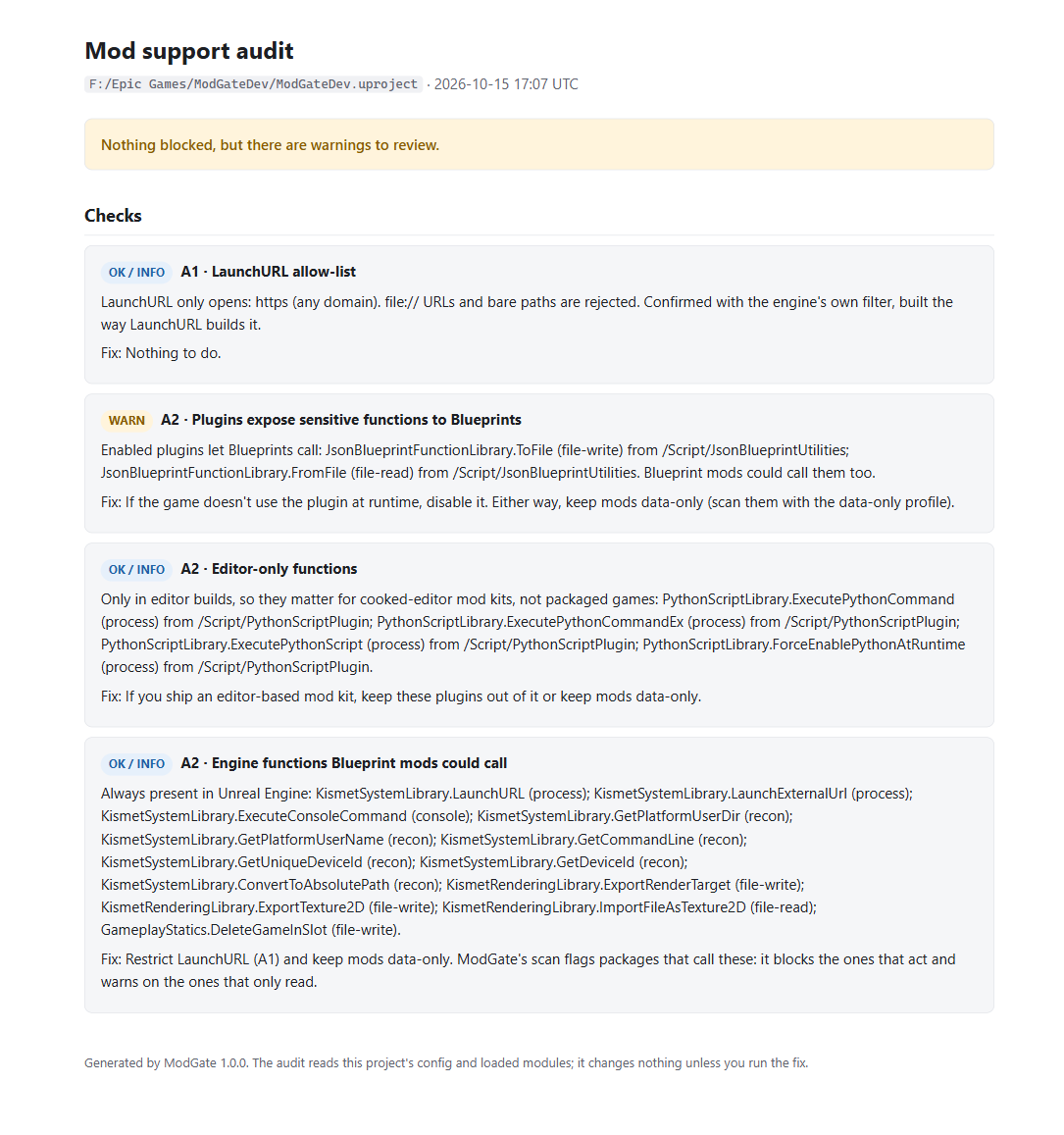

After Restrict LaunchURL to https…Project audit after the fix: A1 passes

The audit on a default project, before and after the fix and an editor restart.

#Policy

The default policy is Resources/ModGatePolicy.json. To change it:

  • Copy it and pass -Policy=<path> to:
  • change the allowed file types;
  • add your own engine or game functions to riskyFunctions (each needs a path, category, severity and why);
  • add command text;
  • set severities per profile.
  • Pick a profile with -Profile=<name>.

M8 is always a block, and a malformed policy exits with code 3.

#Use in a mod pipeline

  • On upload (your Workshop or mod.io submission tool, or a moderation queue): run -run=ModGate -Package=<staging folder> -FailOnWarn and reject anything that doesn't exit 0.
  • Keep the reports with the submission. The JSON is stable (schema 1).
  • In the game, mount only what passed. ModGate 1.0 doesn't enforce at mount time; see the roadmap.

#Limits

  • Same engine version only. Cooked IoStore headers carry no version number, so ModGate reads packages cooked by the engine version it was built for. Packages from another version fail closed (M8).
  • Encrypted containers can't be inspected (M8).
  • Damaged downloads fail closed. Every container entry is read whole and checked against the hash its container stores: BLAKE3 per IoStore chunk, SHA-1 per pak entry, CRC-32 per zip entry. Any mismatch, truncation or unreadable block is an M8 block. ModGate reads IoStore containers with its own bounds-checked reader, because Epic's reader asserts on a cut-off .utoc.
  • Pak indexes are still parsed by Epic's FPakFile. ModGate checks the pak footer and the index's own SHA-1 first, which stops accidental damage. A deliberately crafted pak whose index hash is valid could still make Epic's reader stop the process. The editor menu therefore scans in a separate process, and CI should treat any exit code other than 0–3 as blocked.
  • Data can steer game code. M11 lists the game classes a mod uses. Review that they're ones you meant to expose.

#Supported versions and platforms

  • Engines: UE 5.5, 5.6, 5.7 and 5.8.
  • Where it runs: the Win64 editor and commandlet. Both modules also compile for Linux: every file is compiled with each engine's pinned Linux clang and the engine's warnings-as-errors set. That check is compile-only, and ModGate hasn't been run in a Linux editor. macOS isn't claimed.
  • Mods for any target platform: it reads mods cooked for Windows, Linux and Android (ASTC). This was verified on all four engines with a data-only mod, a scripted mod and a whole base game.
  • No game-time code: both modules are editor modules, so ModGate adds nothing to packaged games or dedicated servers. Unreal compiles editor modules only into editor targets. Verified on all four engines with ModGate enabled: Win64, Linux and Android builds package and start, in Development and Shipping, and none of ModGate's code is in their binaries.

#Roadmap (not in 1.0)

These are planned only if studios ask for them:

  • a runtime gate that refuses to mount unvalidated or unsigned packages;
  • Steam Workshop and mod.io upload hooks;
  • allow-listing your game classes.
